BEP Marine Contour Battery Switch
Original price was: $84.99.$63.99Current price is: $63.99.

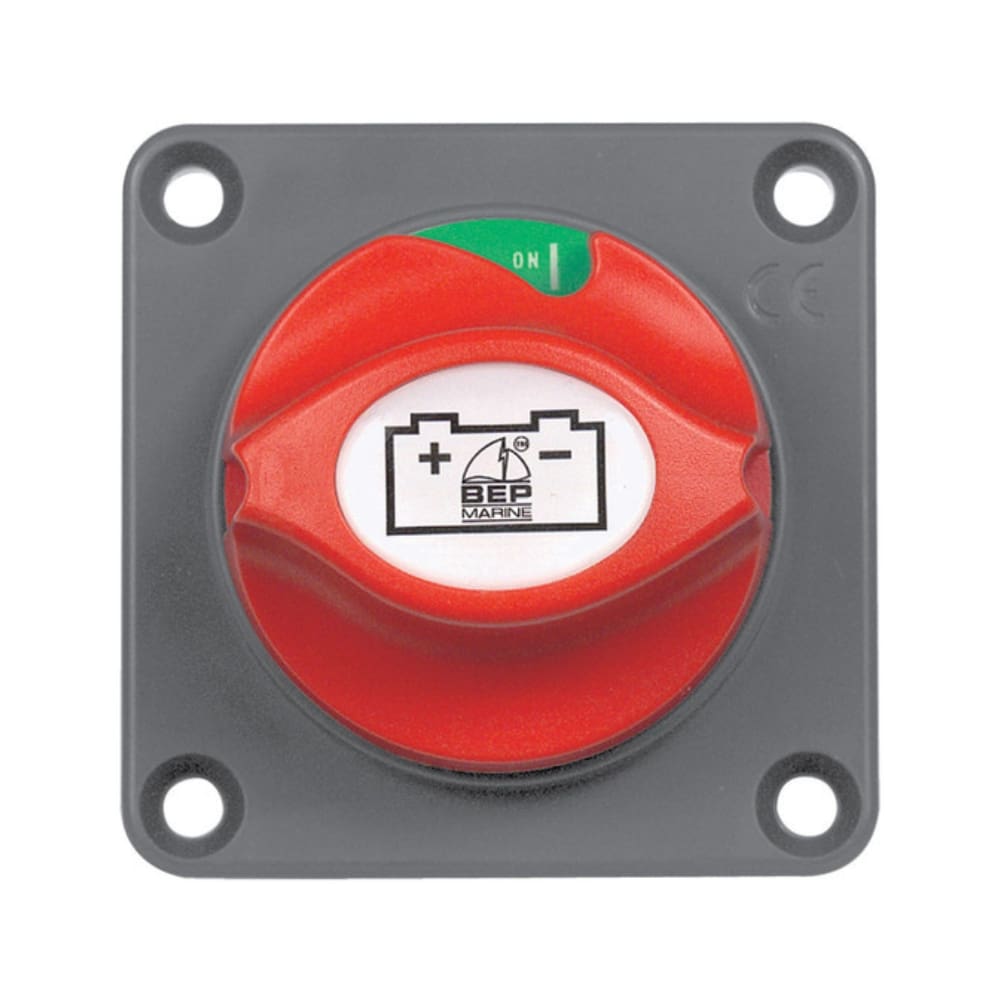

The BEP Marine Contour Battery Switch (701) is a robust on/off master switch with a contour lock system for standalone or linked installations. Features include a removable anti-theft control knob, insulated rear terminals, removable side plates, and ignition-protected, non-corrosive construction.
1 in stock
BEP Marine Contour Battery Master Switch (701)
The BEP Marine Contour Battery Master Switch is a durable and reliable on/off switch designed for marine and RV electrical systems. The innovative contour lock system allows the switch to be used as a stand-alone unit or locked together with other BEP switches for a unified installation. The control knob cannot be removed in the ON or OFF positions, but can be removed when placed in the anti-theft position, providing added security when the vessel is unattended.

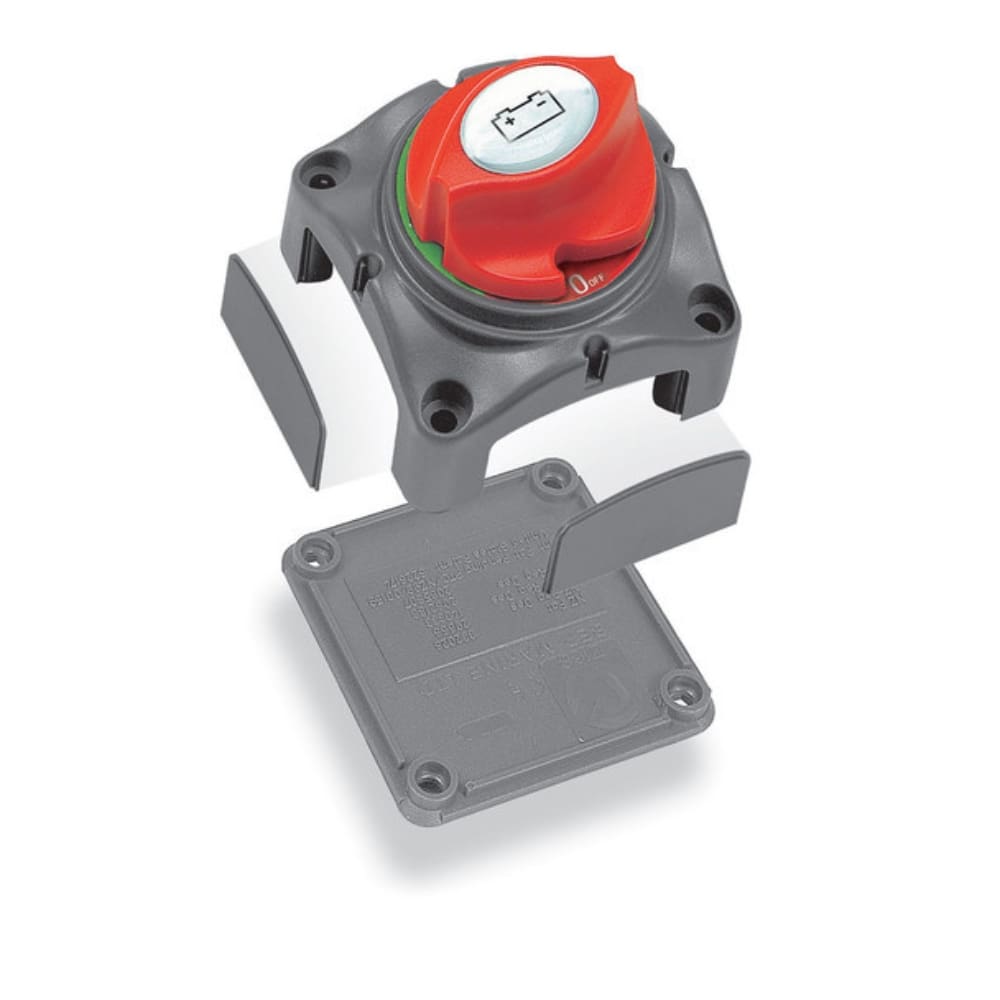

An interchangeable labelling system enables the switch to be adapted for a wide range of applications. Each switch comes standard with a battery symbol label, and optional label sets (113690 and 113691) are available. The removable rear cover insulates terminals to prevent short circuits and ensures ABYC compliance, while removable side plates on all four sides provide easy access for heavy-duty battery cables.
This battery switch can be surface-mounted or recess-mounted in a 52mm hole, offering installation flexibility. Built from non-corrosive, high-temperature, fibre-reinforced plastics, the 701 Contour Switch is designed for long-lasting reliability in demanding marine environments. It is fully ignition-protected for safe use around fuel systems.
Key Features
- Simple and reliable ON/OFF battery master switch
- Contour lock system for standalone or linked installations
- Anti-theft removable control knob (only removable in anti-theft position)
- Interchangeable labelling system for multiple applications
- Rear terminal cover prevents short circuits and meets ABYC standards
- Removable side plates on all sides for heavy-duty cable access
- Surface mount or recess mount (52mm cut-out)
- Ignition-protected and non-corrosive construction
- Moulded in high-temperature, fibre-reinforced plastics
Specifications
- Continuous Rating: 275 amps DC
- Intermittent Rating: 455 amps DC
- Cranking Rating: 1250 amps DC for 10 seconds
- Voltage Rating: Up to 48V DC
- Terminal Stud Size: 2 × 10mm
- Mounting: Surface mount or recess mount (52mm hole), 5mm screw holes
