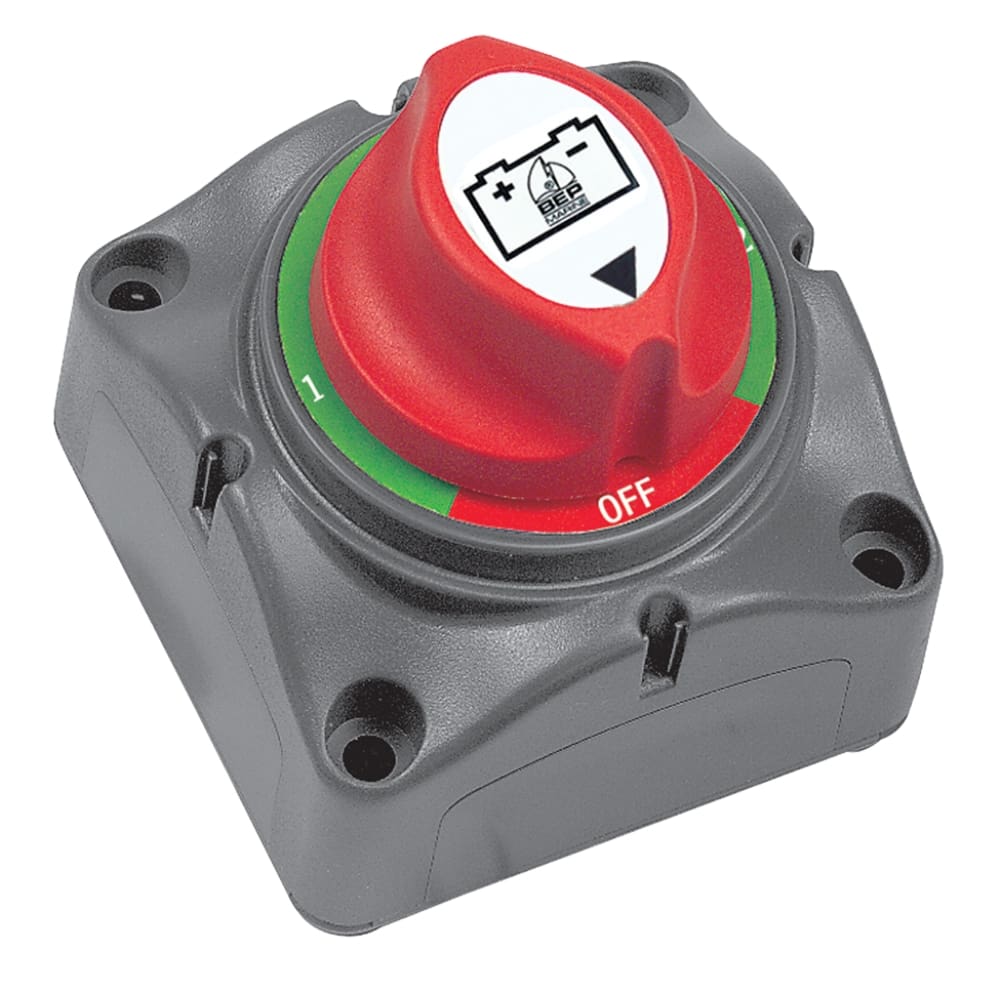

BEP Marine Mini Battery Selector Switch
Original price was: $119.99.$99.99Current price is: $99.99.
The BEP Marine Mini Battery Selector Switch provides a simple, economical way to manage and separate two batteries. Featuring OFF, Battery 1, BOTH, and Battery 2 positions, it includes insulated rear terminals, removable side plates, and durable fibre-reinforced construction for reliable marine performance.
1 in stock
BEP Marine Mini Battery Selector Switch
The BEP Marine Mini Battery Selector Switch delivers a compact, reliable solution for managing dual-battery systems. Designed for convenience and safety, this switch provides OFF, Battery 1, BOTH, and Battery 2 selections, allowing full control over battery usage and isolation. A removable rear cover insulates terminals to prevent short circuits, while removable side plates on all four sides allow easy access for heavy-duty battery cables.
This versatile switch can be mounted on the surface or recessed into a 52mm cut-out, and the flush-mounting version accepts 5mm countersunk screws. The 7015-PM variant is specifically designed for panel mounting with options for full recess or shallow intrusion, providing installation flexibility for a wide range of setups.
BEP Battery Switches are tested to the stringent UL 1107 standard. Continuous, intermittent, and cranking ratings are verified by independent laboratories to ensure the switch safely handles rated currents without excessive heat buildup. Please note: selector switches do not protect electronics from harmful engine-starting spikes.
Key Features
- Simple and economical dual-battery management with OFF, 1, BOTH, and 2 positions
- The rear cover insulates terminals to help prevent short circuits
- Removable side plates on all four sides for cable access
- Surface mount or recess mount (52mm hole)
- Flush-mount version accepts 5mm countersunk screws
- Ignition-protected design for marine environments
- Housed in the same compact dimensions as the BEP 701 series
- Tin-plated copper studs and nuts for maximum conductivity and corrosion resistance
- Moulded in high-temperature, fibre-reinforced plastics for strength and longevity
Ratings & Specifications
- Continuous Rating: 200 amps DC
- Intermittent Rating: 300 amps DC
- Cranking Rating: 1000 amps DC for 10 seconds
- Voltage Rating: Up to 48V DC
- Terminal Studs: 3 × 8mm tin-plated copper
- Mounting: Surface mount or recess mount (52mm hole), 5mm countersunk screws for flush version
Note: Selector switches will not protect electronics from harmful engine starting spikes.
